Gummi Trading

Elastomer Products for Tracks and Rail Vehicles

We produce in Germany



Sealable Solutions supply noise and vibration insulation products for rail traffic. Sub-ballast mats consist of aging - resistant elastomer materials.


All mat types have been tested for their suitability by independent testing institutes and comply with the Technical Norm 918071 of the German Federal Railway.

GT - ELASTOMER PRODUCTS FOR TRACKS AND RAIL VEHICLES

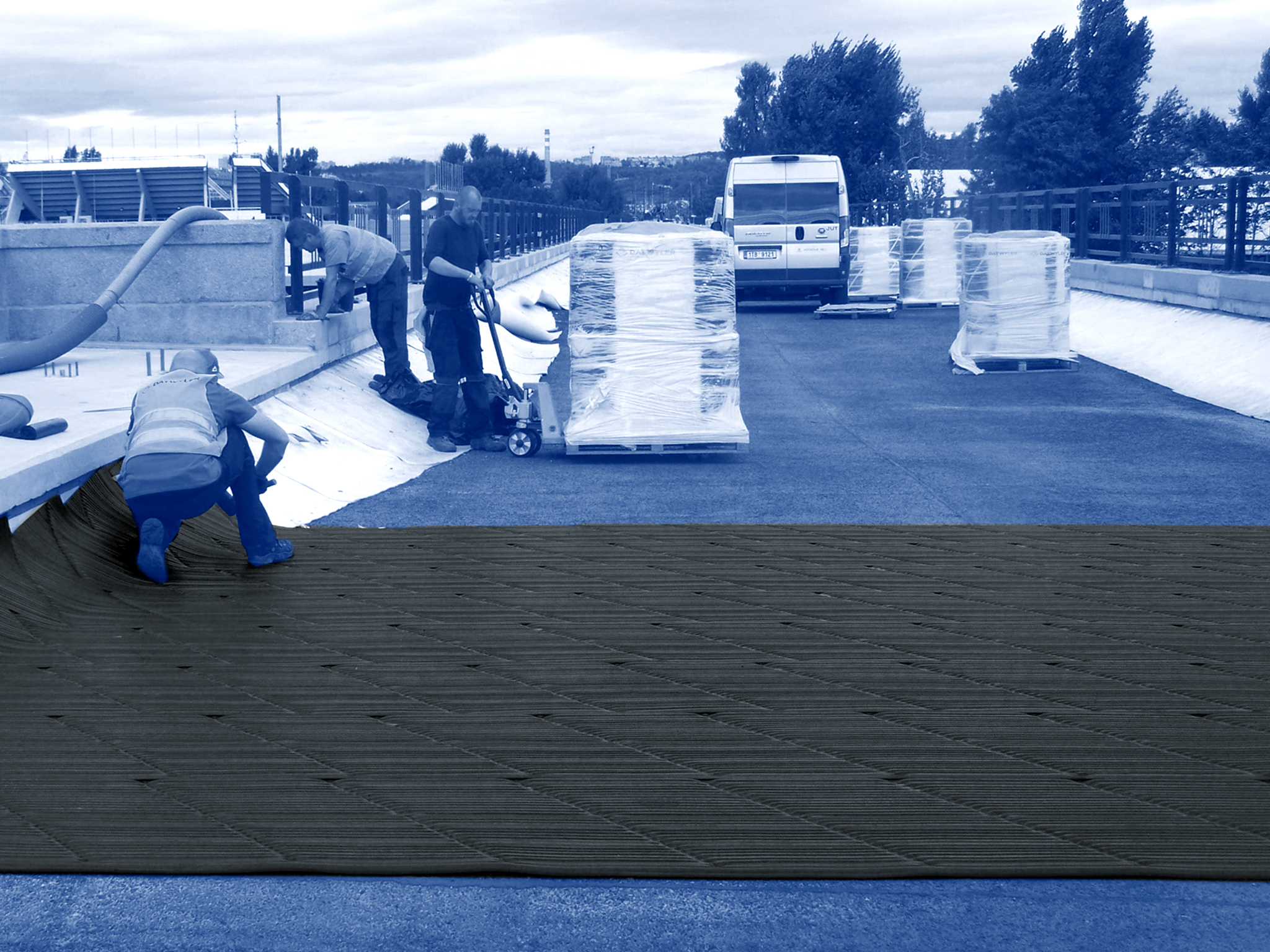

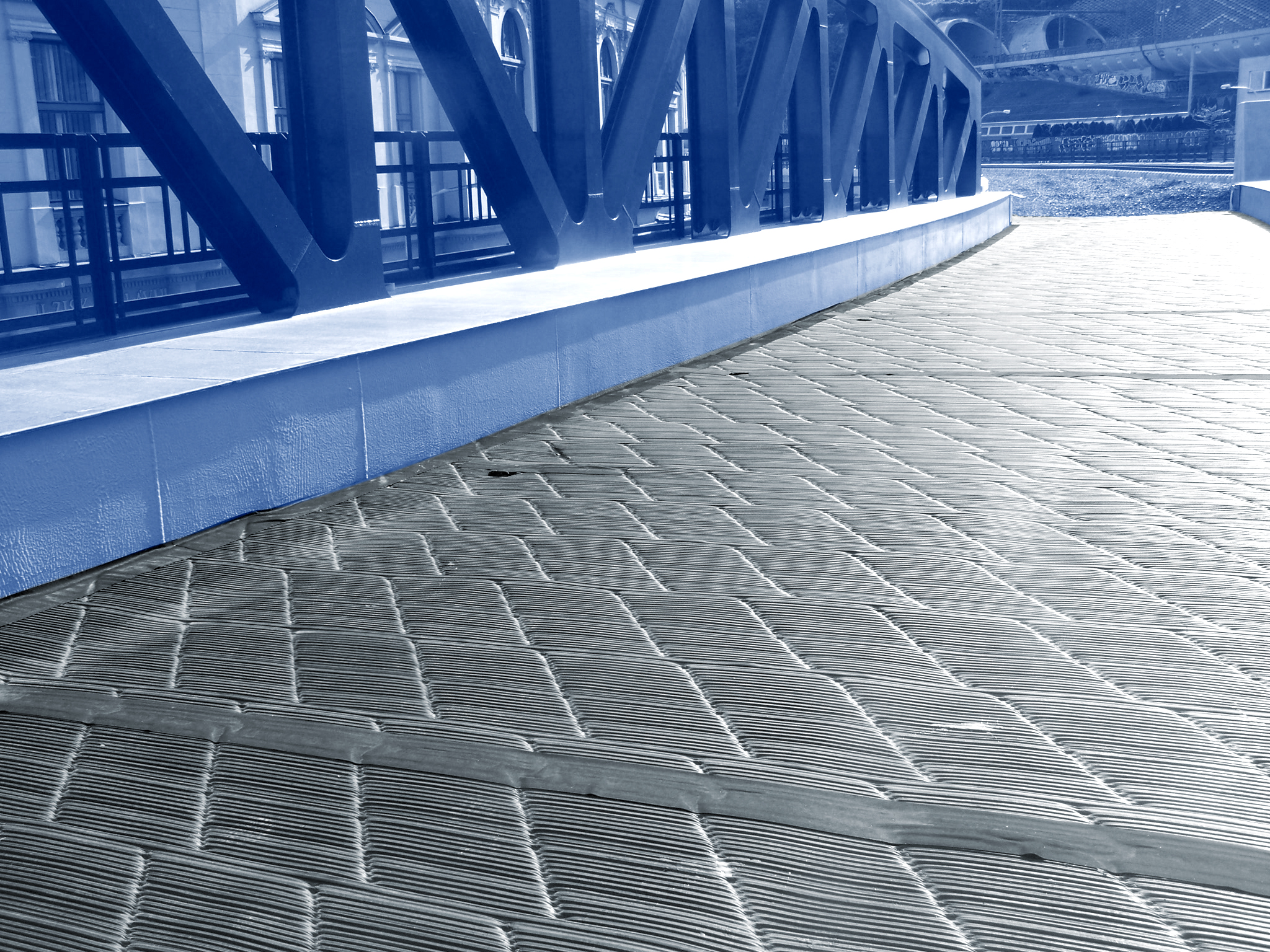

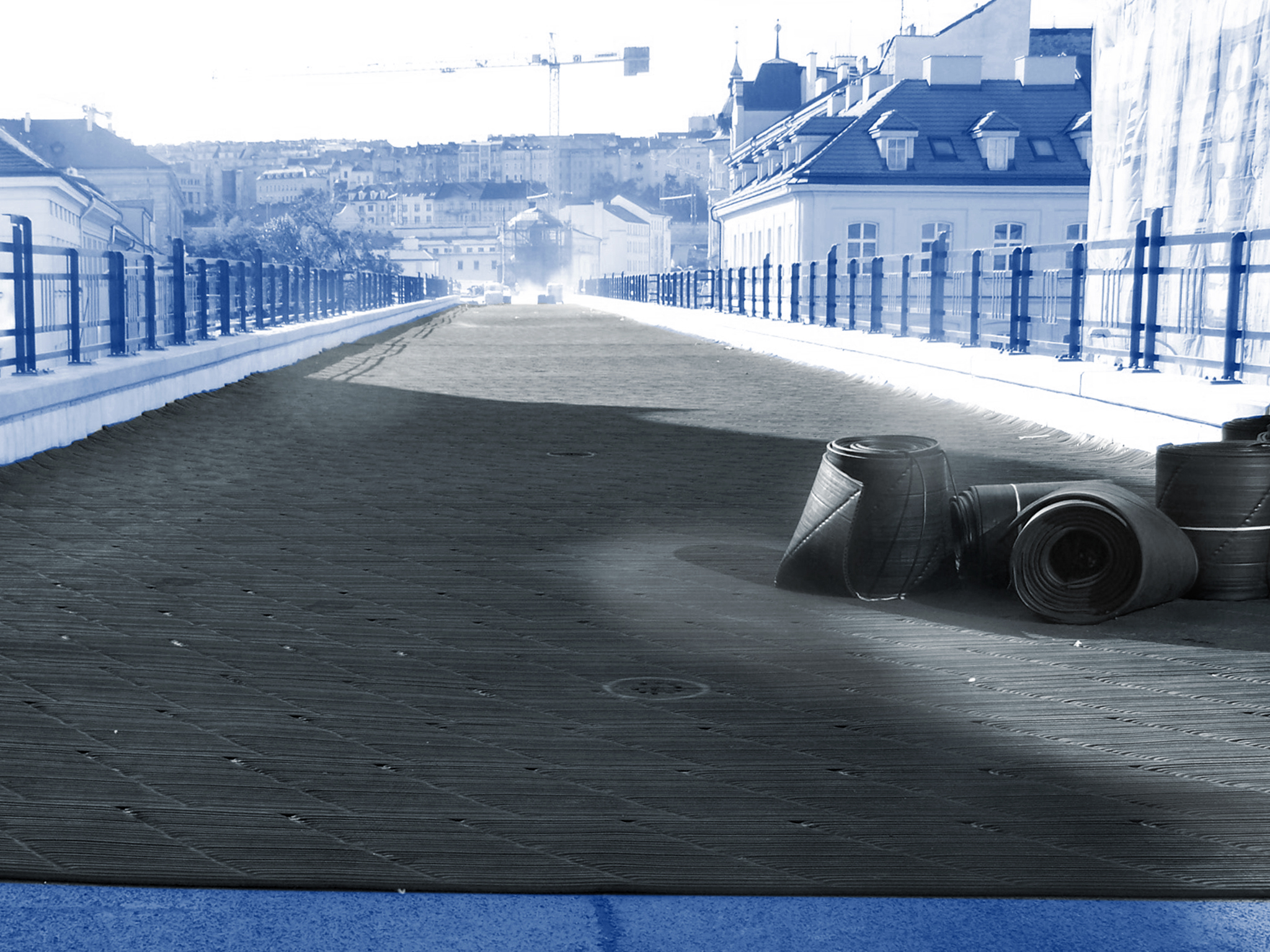

Track Bedding Mats S 22-02/A

Mats are particularly suitable for railway beds, for Metro, and for railway bridges. Products have been tested in technical institutes TAZUS Prague and TASUS Bratislava and have received Certification of SŽDC.



References in the Czech Republic:

  • Tram tracks in the historical center of Prague
  • Bridge Belehradská in Prague
  • Railway viaduct in Znojmo
  • Troja Bridge in Prague
  • Viaduct Negrelli in Prague
  • Bridge Pilsen
  • Bridge Veselí nad Lužnicí, Boršov



 Technical data

Thickness 22 mm
Width 625 mm
Lengths of rolls 10 m / 6 -10 -15 m
Hardness 40 + / - ShA
Weight 14,2 kg/m2
Static bedding modulus 0,03 N/mm3
Dynamic bedding modulus  0,034 N/mm3
Water absorption < 1 %



GT - Protihluková rohož

galerie

Antivibration Mats S 22-04/A

Antivibration mats S 22-04/A are suitable for railway beds and for Metro  Products have been tested in technical institutes TAZUS Prague and TASUS Bratislava and CVUT - Technical University in Prague.



References in the Czech Republic:

  • Metro Prague Letňany



 Technical data

Thickness 22 mm
Width 625 mm
Lengths of rolls 10 m / 6 -10- 15 m
Hardness 40 + / - ShA
Weight 14,2 kg/m2
Static bedding modulus 0,02 N/mm3
Dynamic bedding modulus 0,034 N/mm3
Water absorption < 1 %



.

Track Bedding Mats VH 20-01

Mats VH 20-01

  • Anti-noise and anti-vibration mat VH 20-01.
  • An effective system to reduce vibration, acoustic, and ground noise.
  • The mats are designed for high-speed lines 120 ≥ 200 km
  • The mats are certified and obtained the SŽDC certificate Railway Infrastructure Administration /
  •  The mats were laid on the bridge in Pilsen.



Technical data

Thickness 20  mm
Width 625 mm
Lengths of rolls 10 m / 6 -10 - 15 m
Hardness 50 +/- 5 Shore A
Weight 17,8  kg/m2
Static bedding modulus 0,06 N/mm3
Dynamic bedding modulus >0,15 N/mm3
Water absorption < 1 %



Track Bedding Mats ST 25-01 / ST 25-02

Track Bedding Mats ST 25-01 were used in the switch area in Metro Prague.



 Technical data

Thickness 25 mm +/- 2
Width 625 mm
Lengths of rolls 10 m / 6 - 10 - 15 m
Hardness 35 + / - Shore A
Weight 16,5 kg/m2
Static bedding modulus 0,011 N/mm3
Dynamic bedding modulus 0,015 N/mm3
Water absorption < 1 %





Track Bedding Mats LR 20-01

Mats effectively dampen vibration and noise transmitted by the
structure.

Material: solid rubber EPDM – economic product



Technical data

Thickness 20 mm
Width 625 mm
Lengths of rolls 6 / 10 / 15 m
Hardness 63 +/- 5 Shore A
Weight 12,08 kg/m2
Static bedding modulus 0,04 N/mm3
Water absorption < 1 %



Track Bedding Mats LR 20-01

Track Bedding Mat VM 12-01

These elastomeric materials are also being successfully used in other demanding areas, like building construction and civil engineering.



 Technical data

Thickness 12 mm
Width 625 mm
Lengths of rolls 10 m / 6 - 10 - 15 m
Hardness 50 +/- 5 Shore A
Weight 9,3 kg/m2
Static bedding modulus 0,1 N/mm3
Dynamic bedding modulus 0,15 N/mm3
Water absorption < 1 %



.

Track Bedding Mat VM 20-01

Isolation of building construction.



Technical data

Thickness 20 mm
Width 625 mm
Lengths of rolls 10 m / 6 - 10 - 15 m
Hardness 50 +/- Shore A
Weight 18,3 kg/m2
Static bedding modulus 0,114 N/mm3
Dynamic bedding modulus 0,166 N/mm3
Water Absorption < 1 %



.
